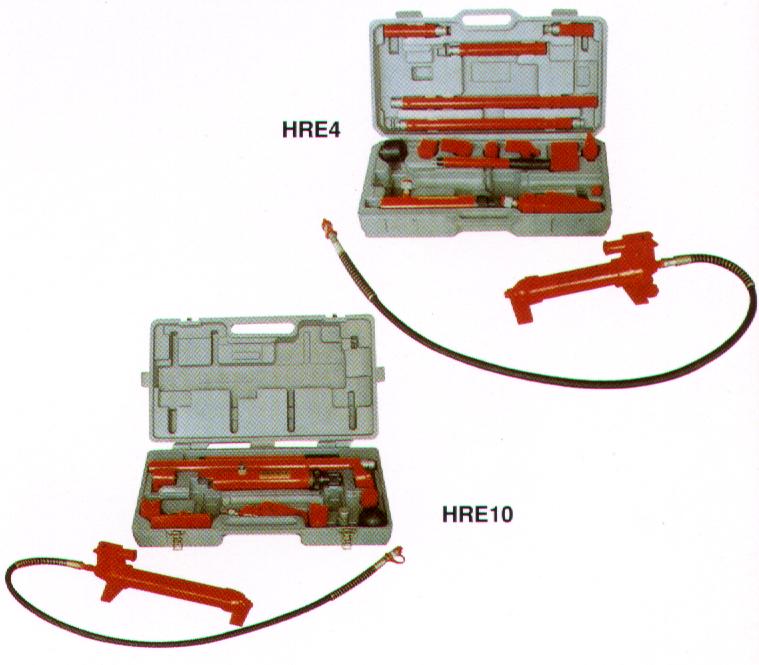

• Heavy duty design

• For both use of vertical and horizontal

• Red power coated finish

• Capacity 4ton,10ton
• Assortment of hydraulic powered equipment for quick set-up to push,pull,spread,

clamp straighten or press

• Requires no more threading,twisting or locking-push on the tubing and attachments
• Heavy duty spreader ram
• Chrome plated long life ram plunger
• Abuilt in overload value to prevent ram and cylinder damage

Model HRE4 HRE10 Capacity (ton) 4 10 Ram Stroke (mm) 120 130 Ram Min.Height (mm) 275 370 Ram Max.Height(mm) 395 500 Net Weight (kg) 20 31 Gross Weight(kg) 22 35

• Compact bender designed to make avarity of bends on flat,square or solid round stock.
• Provide an economical way to achieve many of the most needed bends.
• Light weight enough to be used as a portable bender on field service trucks .
• Do not attempt to bend material other than hot-rolled,mild steel up to 5/16"x2" ,5/8"

solid round or square.

• Do not bend material greater than 1/4" in thickness around the center pin,use the 1"die

so as not to bent the center pin.

• When using the right angle bend attachment use only hot-rolled mild steel upto 3/16"x2 or 1/4x1-1/4" .
